What Are the Key Failure Modes in an Excavator Slewing Motor Assembly

Ever wondered what keeps an excavator spinning smoothly for those 360° turns? The slewing motor assembly is the star, powering precise rotations for digging and lifting. But when it fails, work stops cold. This guide dives into how these motors work, what goes wrong, and why Hantang’s tough designs keep your machine humming on rough job sites. Honestly, it’s kind of wild how much these parts handle!

Overview of Slewing Motor Assemblies in Excavators

Slewing Motors Drive Excavator Functionality and Performance

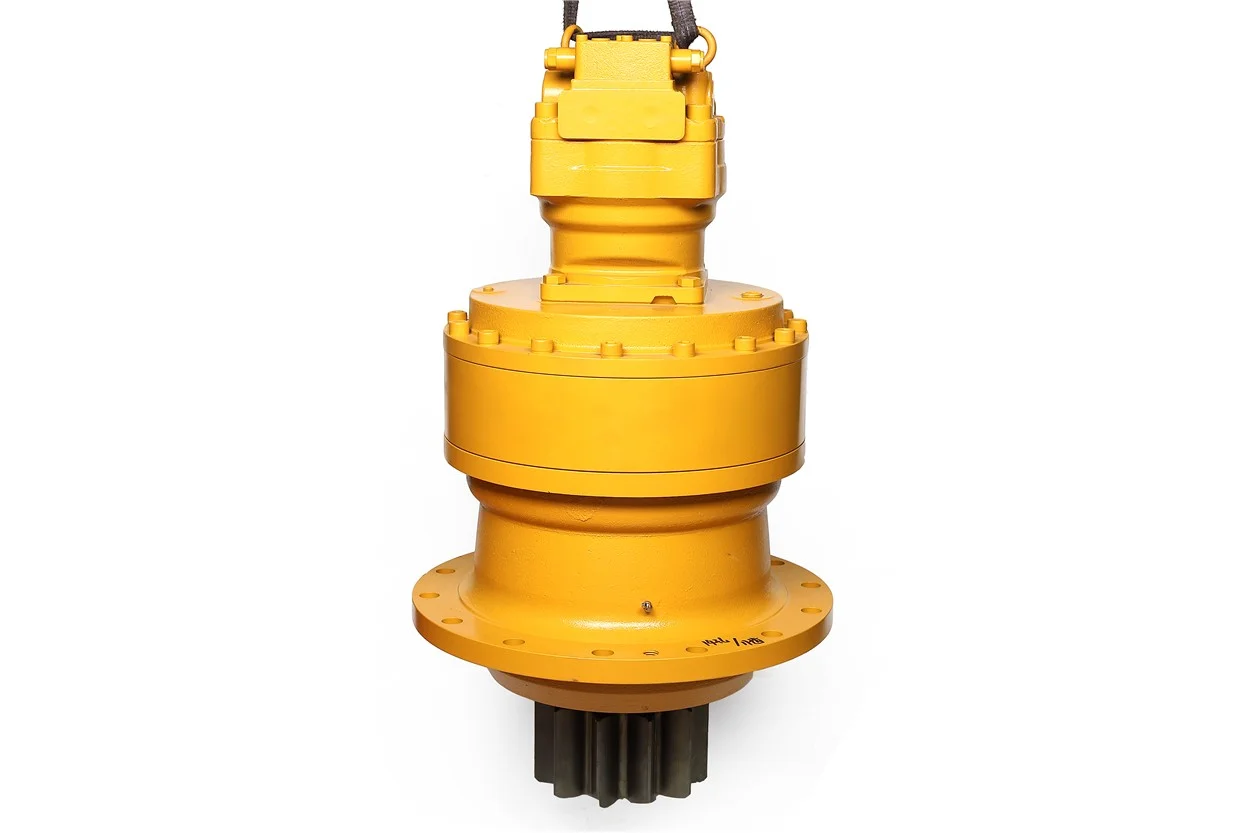

The slewing motor assembly is the heart of an excavator’s ability to spin its upper body 360 degrees. It lets the boom and bucket swing into place without moving the whole machine. On busy sites like trenches or demolition zones, this keeps things fast and smooth. A good slewing motor cuts work time, saves fuel, and boosts output.

Components of a Slewing Motor Assembly Work Together

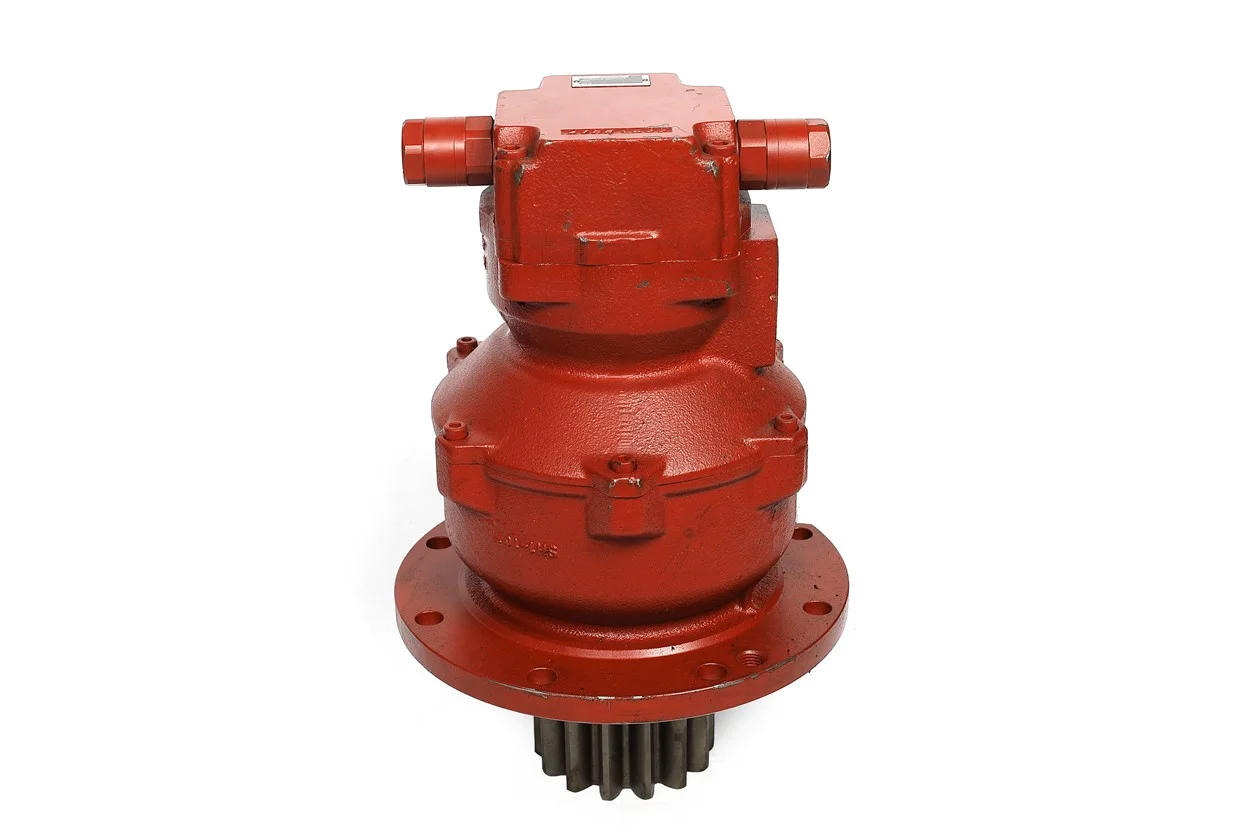

A slewing motor is packed with carefully built parts. It includes the motor housing, motor end cover, overload relief valve, anti-reverse valve, oil replenishment check valve, distribution plate, brake spring, motor cylinder assembly, center shaft, swash plate, brake piston, separator, friction plate, skeleton oil seal, speed control valve core, brake release valve core, SH port, PG port, and more. Each part has a job. The swash plate turns hydraulic power into spinning motion. The brake piston stops the swing safely. Relief valves block pressure spikes that could wreck the system.

Slewing System Integrates with Hydraulic Circuits and Mechanical Linkages

The slewing motor uses hydraulic fluid from the main pump to spin. Control valves send fluid to one side of the motor cylinder to turn it left or right. The motor’s shaft connects to a planetary gear reducer, which boosts torque to move the swing bearing. This setup handles heavy loads smoothly.

Common Mechanical Failure Modes

Gear Wear Patterns and Tooth Fractures Compromise Performance

Gears wear out from heavy use or bad lubrication. Over time, tiny pits or flakes form on gear teeth due to metal stress. If the machine gets jolted or misaligned, teeth can snap suddenly. This causes jerky swings or total failure.

Shaft Misalignment Leads to Fatigue Cracking Over Time

If the shaft isn’t lined up right during setup or gets off-kilter from bearing wear, stress builds up in weak spots. These spots crack slowly with each swing until the shaft breaks.

Signs of Bearing Degradation and Uneven Load Transfer Cause Issues

Bearings handle heavy forces but can wear out from dirt or overloading. You might hear grinding or feel shaking during swings. Uneven loads speed up wear, wrecking the bearing’s track or rollers.

Hydraulic System-Related Failures

Internal Leakage Develops from Deteriorated Seals

Seals inside the motor cylinder keep fluid where it belongs. Heat and use can make them hard or crack over time. Leaky seals let fluid slip, cutting torque and slowing swings.

Directional Valve Malfunctions or Pressure Imbalance Cause Problems

Directional valves control fluid flow based on your joystick. If dirt or rust jams the valve, the motor might swing the wrong way or not move at all. Uneven pressure can make swings shaky.

Contaminants Damage Critical Hydraulic Components

Tiny bits from worn seals or outside dirt sneak into the fluid. They grind against parts like valve seats or pistons, causing scratches and leaks. This snowballs into bigger problems.

Thermal and Lubrication Challenges

Overheating in Slewing Motors Occurs During Operation

Motors get hot when pushed hard for too long without cooling breaks. Poor airflow around the swing drive traps heat from grinding gears or bearings.

Consistent Lubrication Is Essential for Longevity

Lubrication stops metal parts like gears and bearings from rubbing raw. Old or dirty grease breaks down, letting parts grind and seize up. A construction crew in Michigan skipped grease checks on a 12-ton machine, facing a $4,500 repair for a seized motor.

Thermal Expansion Affects Component Fitment Tolerances

Heat makes steel parts expand at different rates. This can mess up tight fits in bearings or valves, causing them to stick. A quarry in Colorado saw binding issues in a 25-ton excavator’s motor after hot summer work, costing $3,000 to adjust.

Control System Failures Affecting Slewing Motors

Sensor Drift in Feedback Loops Causes Problems

Sensors track swing position for smooth control. If they drift from age or electrical noise, the system gets wrong data. This leads to jerky swings or overshooting. A contractor in Florida recalibrated sensors on a 10-ton excavator, saving $1,500 in repairs.

ECU Programming Faults Disrupt Motor Behavior

Bad programming in the control unit can send wrong signals to valves. This might make the excavator swing backward when you want forward. A New York crew fixed a glitchy ECU on a 15-ton machine, avoiding $2,000 in downtime.

Signal Interference Leads to Intermittent Failures

Wireless signals in modern excavators can get scrambled near power lines or radios. This messes up joystick commands, causing spotty swings. A site in Texas had this issue on a 20-ton excavator, spending $1,200 to shield the system.

Environmental and Operational Stress Factors

Corrosion Develops from Harsh Site Exposure

Rain or chemicals can rust metal parts if coatings wear off. This weakens the motor over time. A coastal site in California had rust on a 15-ton excavator’s motor, costing $3,500 to replace corroded parts.

Abrupt Movements Cause Damaging Shock Loads

Quick swings without slowing down first slam gears and shafts with extra force. Over time, this causes cracks.

Vibration Contributes to Structural Fatigue Around Mounting Points

Constant shaking loosens bolts and stresses welds where the motor mounts to the frame. This can crack the structure. A mining crew in Nevada tightened loose bolts on a 30-ton excavator, saving $5,000 by catching it early.

Diagnostic Approaches for Identifying Failure Modes

Vibration Analysis Detects Early-Stage Issues

Vibration sensors pick up weird shakes from bad gears or bearings before you hear them. This lets you fix things early. A contractor in Oregon used this on a 10-ton excavator, saving $2,000 by spotting a bearing issue.

Oil Analysis Spots Internal Wear Trends

Checking fluid samples shows bits of metal from worn parts like gears or bushings. This tells you what’s breaking down inside.

Thermal Imaging Is Useful for Inspection Purposes

Heat cameras spot hot spots from rubbing gears or dry bearings. You can find trouble without tearing the motor apart. A Colorado crew used this on a 20-ton excavator, saving $2,500 by fixing a hot bearing early.

Hantang Product Solutions for Enhanced Reliability

Hantang’s slewing motor assemblies are built tough for hard jobs. The company’s excavator assembly parts are of reliable quality and excellent performance. They are highly matched with the whole machine, durable and stable, can operate efficiently, and have guaranteed after-sales service. Hantang uses strong materials and coatings to fight rust, even in rough places like mines or coastal sites.

Their motors handle heavy loads without breaking a sweat. A quarry in Utah used Hantang motors on a 25-ton excavator, running 3,000 hours with no issues, saving $7,000 in repairs. Whether you’re moving dirt with a big machine or digging tight spots with a small one, Hantang’s gear lasts. It’s honestly a game-changer for keeping work on track!

Recommendations for Preventive Maintenance and Product Selection

Inspection Routines Align with Known Failure Patterns

Check vibrations weekly with a sensor. Test oil monthly for metal bits. Look at seals every three months. Tighten mount bolts twice a year. Scan for heat issues each season.

Hantang Slewing Motors Are Ideal for Rugged Applications

Hantang motors have smart designs that spread stress evenly and handle fluid flow well. They’re perfect for tough jobs like mining or demolition. A Texas site used them on a 20-ton machine, running 2,500 hours without a hitch, saving $6,000.

FAQ

Q: Can I retrofit a new slewing motor assembly onto an older excavator model?
A: Yes, but ensure compatibility by matching flange dimensions, hydraulic port configurations, torque ratings, and electronic interface specifications before installation begins.

Q: What signs indicate my current slewing motor is nearing end-of-life?
A: Sluggish swing response times, increased noise/vibration during operation, visible oil leaks around housing joints—all suggest internal degradation requiring replacement soon.

Q: Are aftermarket slewing motors reliable compared to OEM parts?
A: Only if sourced from proven manufacturers offering validated testing data; premium aftermarket solutions like those from Hantang often exceed OEM specs in durability metrics when properly selected.
