What Excavator Hydraulic Parts Are Essential in a Basic Hydraulic System

A simple excavator hydraulic setup depends on a few vital pieces to get the job done. You’ve got the hydraulic pump, which turns raw engine power into fluid force. Then there are control valves that guide the fluid and handle the machine’s movements. Hydraulic cylinders are also key, as they transform that fluid pressure into straight-line action. Lastly, return lines paired with filters keep the fluid clean and cool. Together, these bits ensure smooth control, strong power delivery, and steady work for tasks like digging, lifting, or swinging the machine around. Keeping these parts matched and well-maintained is super important for the system to run well and last long.

Introducing Hantang: Your Trusted Partner in Excavator Hydraulic Solutions

When it comes to top-notch performance, toughness, and accuracy, folks in the heavy machinery world often look for a reliable name. Hantang isn’t just a supplier of excavator hydraulic parts—it’s like a teammate helping you keep your equipment running without a hitch. With a huge stock of parts that match OEM standards, Hantang makes sure every component you get is up to tough field challenges.

Whether you need to swap out a tired hydraulic pump or improve your control valve setup, Hantang has custom options supported by solid know-how. They focus on delivering strong parts like hydraulic pumps, cylinders, valves, filters, and accumulators—all crucial for getting the most out of your gear. Plus, with quick worldwide shipping and helpful customer support, Hantang helps you cut downtime and stay at full throttle. Honestly, I’ve seen how much smoother projects go when you’ve got a dependable supplier like this!

Precision Engineering Meets Reliable Supply Chain

In hydraulic systems, where everything has to fit just right and handle crazy pressure, you can’t afford shaky parts. Hantang connects high-end design with a supply chain you can count on. Every piece is picked to meet or beat OEM standards while working flawlessly with your current setup.

Core Functions of an Excavator Hydraulic System

The Role of Hydraulic Power in Excavation Operations

Hydraulic systems are like the heartbeat of today’s excavators. They take the engine’s mechanical strength and turn it into fluid power. This drives important parts like the arm, boom, bucket, and tracks. The pump changes engine output into hydraulic force, constantly pushing pressurized oil through the whole system. This setup lets you control power across different directions all at once, making the machine super responsive.

Why Component Compatibility Matters

Matching parts isn’t just about size—it’s about how they work together. The flow speed has to line up between pumps, valves, and actuators. If it doesn’t, you might get air bubbles or slow responses in the system. The pump’s strength comes from both pressure and flow. Use the wrong parts, and you could end up with leaks inside or breakdowns when the machine’s under heavy strain.

The Hydraulic Pump: Heart of the System

Types of Pumps Commonly Used in Excavators

Hydraulic pumps come in a few flavors, like gear, vane, and piston types. Each has its own way of handling fluid flow for different jobs. Variable displacement piston pumps are pretty popular since they can tweak flow on the fly based on what the load needs. The tilt of the swash plate decides how much oil gets sucked in or pushed out. This handy feature lets operators do tricky moves—like lifting and spinning or digging and moving—without losing steam.

Selecting the Right Pump Assembly

Picking the right pump setup means getting the pressure just right without stressing other parts. Take mid-sized excavators, for instance. If you’re dealing with changing loads, you’ll want something balanced. Check out options like:

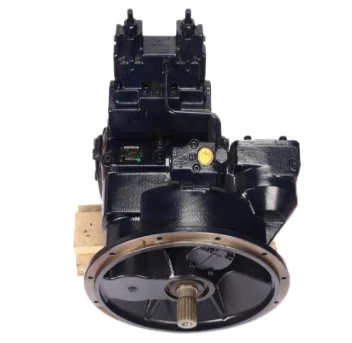

• 31EL-00100-Pump Assembly-HYUNDAI
• PVC80RC13-Pump Assembly-Nabtesco

These units are built to handle varying workloads efficiently while staying tough as nails.

Control Valves: Directing Flow with Precision

Functionality Beyond On/Off Switching

Control valves do more than just turn things on or off. They also manage direction and speed with fine-tuned controls. The main valve core, or reversing valve, handles the on/off switch, flow amount, and direction of hydraulic oil using the joystick. This lets operators adjust movements carefully, especially for tricky tasks like digging near pipes or smoothing out bumpy ground.

Proportional vs Spool Valves in Excavators

Spool valves are often the go-to because they’re super sturdy under high pressure. But proportional valves give you gentler shifts by changing flow based on small signals. They’re great for jobs needing a light touch rather than raw power.

Hydraulic Cylinders: Translating Pressure into Motion

Key Cylinder Applications in Excavators

Hydraulic cylinders make straight-line moves happen for stuff like raising or lowering the boom, stretching or pulling back the arm, and tipping or dumping the bucket. Their strength depends on the cylinder’s width and the pressure coming from the valves. The working oil on the P2 side joins with oil from the P1 side through the arm one-speed valve core, then flows into the arm cylinder’s big chamber via the AA oil port.

Maintenance Considerations for Cylinder Longevity

Keeping seals in good shape is a must. Worn-out seals can cause leaks inside, which cuts down on how far the cylinder moves. Regularly checking for scratches on piston rods or dirt around seal areas can save you from early breakdowns.

Return Lines & Reservoirs: Completing the Circuit

Fluid Recovery and Thermal Regulation

Return lines bring low-pressure fluid back to reservoirs to cool off before it loops back into the system. This cooling stops the setup from getting too hot during long work hours, especially when doing multiple tasks like lifting the boom and swinging at the same time. If these lines get messed up, the engine can’t run the pump, and pilot pressure drops to zero. Often, this happens because filters in return lines get ignored or the reservoir gets dirty.

Importance of Cleanliness in Return Systems

Dirt sneaking into return lines can block filters or harm delicate valve parts later on. A clog will slow down hydraulic oil flow, so cleaning is a regular must. Always swap out return filters when suggested to keep the system clean and running smooth.

Filters & Accumulators: Supporting System Stability

Role of Filtration Units Across the Circuit

Filters catch tiny bits of junk that could wear down or jam tight parts like servo pistons or check valves. Good filters protect everything, from pumps on one end to cylinders and valves on the other. A blocked filter will mess up hydraulic oil flow, so keep an eye on them.

How Accumulators Enhance Response Time

Accumulators hold onto pressurized fluid, ready to release it fast when you need a quick lift or sudden track switch. This boosts how fast the machine reacts without waiting on the pump. They also soften sharp pressure jumps that might otherwise wreck seals or crack parts under heavy jolts.

Matching Components with System Requirements

Flow Rate Coordination Between Parts

Every piece needs to match in flow ability. A too-big pump can overload a small valve, causing weird actions or extra heat. On the flip side, a tiny pump might not feed actuators enough during big combined moves. When doing multiple tasks, boosted pressure oil works on the travel diameter valve core to switch things up. For tough jobs needing steady high flow to several actuators at once, something like K5V140DTP175R-9N11-Pump Assembly-KPM delivers great results.

Pressure Ratings as Design Benchmarks

Each part must handle the system’s pressure limits. Going over those limits can lead to disasters like cracked casings or busted hoses. Always check manufacturer specs when picking replacements to make sure they fit the pressure levels your machine is built for.

FAQ

Q1: What causes an excavator’s hydraulic system to stop functioning?
A: If the system isn’t opened, pilot oil can’t reach the handle, and nothing happens. Usual problems include a broken solenoid valve, weak pilot pump pressure, clogged filters, damaged couplings, or low hydraulic fluid.

Q2: How often should I replace my excavator’s hydraulic filters?
A: Check filters often based on how much you use the machine. Replace them right away if a clog slows down flow, since blockage will mess up hydraulic oil movement.

Q3: What’s better for precise control – spool valves or proportional valves?
A: Proportional valves are awesome for exact work since they adjust flow smoothly. But spool valves are tougher in harsh conditions, making them better for rough digging jobs where strength beats out finesse.
