What is an Excavator Arm and How Does It Influence Machine Performance

The excavator arm, made up of the boom, stick, and bucket setup, plays a huge role in how well the machine works. Hantang steps up the game by crafting top-notch, carefully designed arms that are tough, adaptable, and perform brilliantly no matter the job site conditions.

What Are the Main Components of an Excavator Arm?

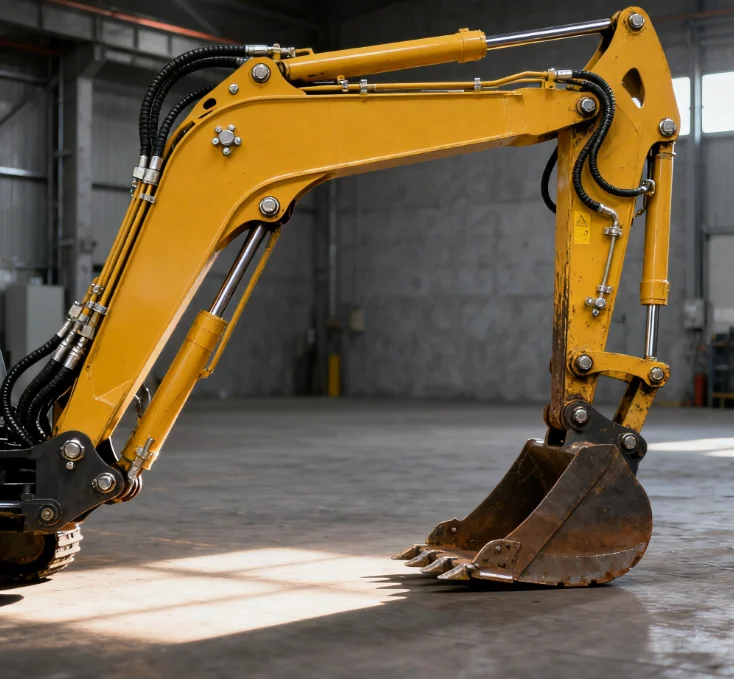

The excavator arm, sometimes called the working arm, is a key piece of any hydraulic excavator. It’s the main tool for digging, lifting, and moving stuff around. The major parts include the boom, the stick (or dipper), and the bucket setup.

Boom, Stick, and Bucket Assembly

These three pieces are the backbone of the excavator’s arm. The boom links to the machine’s upper body and handles the up-and-down motion. Then there’s the stick, attached to the boom. It stretches out or pulls back to manage how far or deep the arm goes. Finally, the bucket at the stick’s end does the heavy lifting—whether it’s scooping dirt or breaking ground.

As a team, these parts set the limits of what your machine can do, like how far it reaches or how deep it digs. Picking a well-made setup means better results, no matter what kind of job you’re tackling.

Hydraulic Cylinder Integration

Hydraulic cylinders are fitted on each part—boom, stick, and bucket—to power their movements. These cylinders turn hydraulic pressure into straight-line force, letting you control every joint with precision.

The pump’s strength comes from a mix of pressure and flow. Pressure depends on the weight being moved, while flow ties to the engine’s speed and adjustments in the swash plate angle. This balance decides how well your arm reacts when the load changes.

Linkage and Pivot Mechanisms

Linkages tie the hydraulic cylinders to parts like the bucket through pivot spots. These joints let the arm bend and move while passing on force effectively. Using strong bushings and pins at these points cuts down on wear and helps the arm last longer.

How Does the Excavator Arm Affect Digging Efficiency?

How well an excavator digs doesn’t just come down to the operator’s skills. It’s also about how effectively the arm turns hydraulic power into useful action.

Reach and Depth Capabilities

The shape and size of your boom and stick combo directly affect how far or deep you can dig. A longer stick stretches your reach, but it might weaken the force due to less leverage. On the flip side, a shorter arm packs more punch but limits how far you can go.

Adjusting this setup to match the job—whether it’s a tight city lot or a wide-open field—helps get the most out of every move.

Force Transmission Through Hydraulics

Hydraulic power is super important here. The oil pushed out by the P1 pump moves into the main control valve’s P1 port. It then opens the CP1 check valve and hits the arm’s two-speed valve core. This flow keeps the pump and arm movements in sync, which is vital for steady digging strength.

Under heavy loads, when P1 and P2 circuits join up, the oil from P2 mixes with P1’s flow through the arm’s one-speed valve core. This teamwork delivers full power to key spots during tough digging jobs.

Cycle Time Optimization

Faster cycles mean getting more done in less time. Smooth cylinder movements paired with quick valve responses cut down on delays between actions. Honestly, tuning the hydraulics is a big deal for ramping up output without burning extra fuel. I’ve seen it make a real difference on busy sites!

In What Ways Does Arm Design Impact Structural Durability?

Lasting toughness isn’t just about strong materials. It’s also about smart design choices that handle stress over years of hard use.

Weld Quality and Joint Engineering

Bad welds often break under repeated stress. Careful welding spreads pressure evenly across joints. Likewise, smart joint designs—like smooth curves or tapered supports—help avoid sharp stress points that could lead to early breakdowns.

Load Distribution Across the Arm

Well-thought-out linkages spread the weight evenly from the boom’s base to the bucket’s edge. This cuts down on strain in any one spot. Over time, this balanced approach keeps the arm working smoothly and extends its life by a good margin.

How Do Hantang’s Excavator Arms Enhance Operational Performance?

When you’re looking for gear that not only meets basic standards but goes beyond, Hantang has your back. They’re a trusted name worldwide for aftermarket parts in heavy equipment.

Hantang crafts excavator arms with pinpoint accuracy, ensuring they fit perfectly with major OEM machines. Their arms are made from sturdy materials under tight quality checks. This means every piece has solid welds, spot-on measurements, and can handle wear and tear, no matter where it’s shipped.

Their excavator parts stand out for reliability and top performance. They mesh well with the whole machine, stay stable under pressure, and keep going strong. I’ve heard from folks on massive road projects overseas—uptime is everything, and Hantang delivers.

Whether you’re moving mountains of dirt or handling detailed construction jobs, Hantang builds solutions to match your exact needs. Plus, their support team is there when things get tricky, which is a lifesaver on tight deadlines.

What Role Does Hydraulics Play in Arm Functionality?

Without hydraulics, the arm is just dead weight. Every nudge of the joystick relies on smooth hydraulic teamwork behind the scenes to make things happen.

Cylinder Stroke and Pressure Control

Hydraulic cylinders work based on how far they stretch or shrink, driven by fluid changes under pressure from the pumps. The back-and-forth motion of the plunger, paired with the valve plate, handles oil intake and release. Tweaking the swash plate angle adjusts flow as needed—a neat trick in today’s smart control setups.

Flow Rate Matching with Arm Movement

To keep motions smooth and avoid lag, the swash plate’s angle controls the plunger’s stroke volume. When the angle gets steeper, the flow, displacement, and speed of the arm all ramp up together. This fine adjustment ensures every lift or scoop feels steady yet strong enough for tough conditions.

Valve Configuration and Response Time

Modern valves use solenoid switches to flip between circuits fast, based on signals from the joystick or onboard systems. The setup manages hydraulic flow through central paths, logic circuits, and return lines. Quick responses mean better control in real time, which is critical for safety near buildings or workers.

Why Is Customization Important for Excavator Arms?

Every job site is different. If you want maximum efficiency without overloading your equipment, your setup shouldn’t be one-size-fits-all. Hantang offers customized services to meet your needs.

Project-Specific Geometry Requirements

A city contractor might need a short arm for tight spaces with narrow swings. Meanwhile, a mining operation could want a longer reach with a beefed-up boom. Tailored designs boost output while keeping things safe and stable, no matter the site.

Adaptation to Different Soil Conditions

Digging through sticky clay isn’t the same as sandy ground or rocky areas. Each needs a different level of force. Adjusting cylinder sizes or linkage setups helps get the best digging power without wearing out buckets or pins too fast, even after long hours.

Integration with Specialized Attachments

Whether it’s a tilting bucket or a hydraulic breaker, each add-on brings unique stresses. The arm needs matching mounts, like proper bracket spacing or extra supports. A custom arm makes sure these extras work without issues, saving you from fix-up hassles later.

FAQ

Q: What is an excavator arm called?
A: The excavator arm includes three main bits: the boom (for lifting up and down), the stick (for reaching out), and the bucket (for grabbing materials). Together, people often call this the \excavator working device.

Q: How does Hantang ensure compatibility with different machines?
A: Hantang builds its arms to match various OEM specs, making sure they fit smoothly across brands. Their high-quality standards are known worldwide in construction and infrastructure work.

Q: What causes premature wear in excavator arms?
A: Things like skipping grease jobs or waiting too long to replace worn bushings and pins build up stress. Not checking often enough also misses early seal leaks, which hurt cylinder performance over time.
